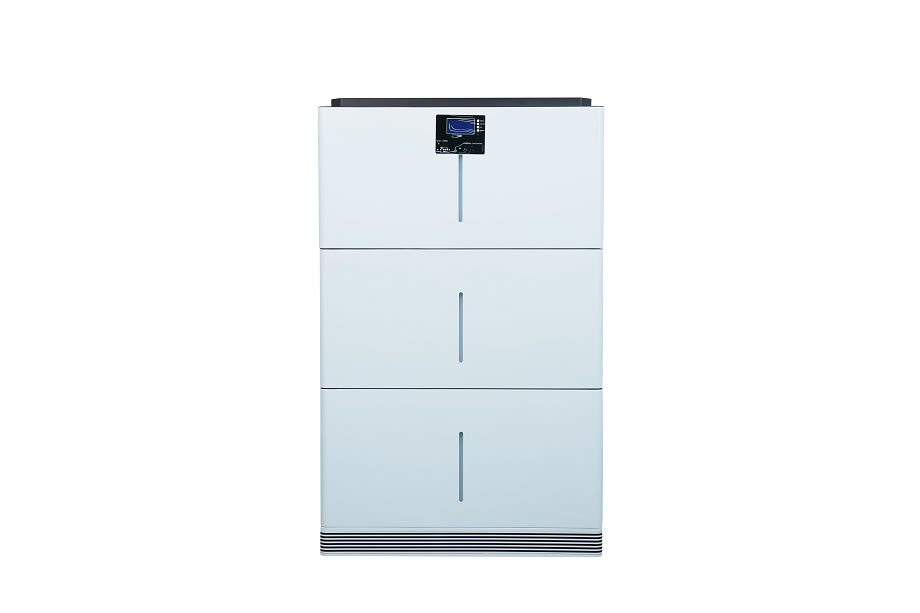

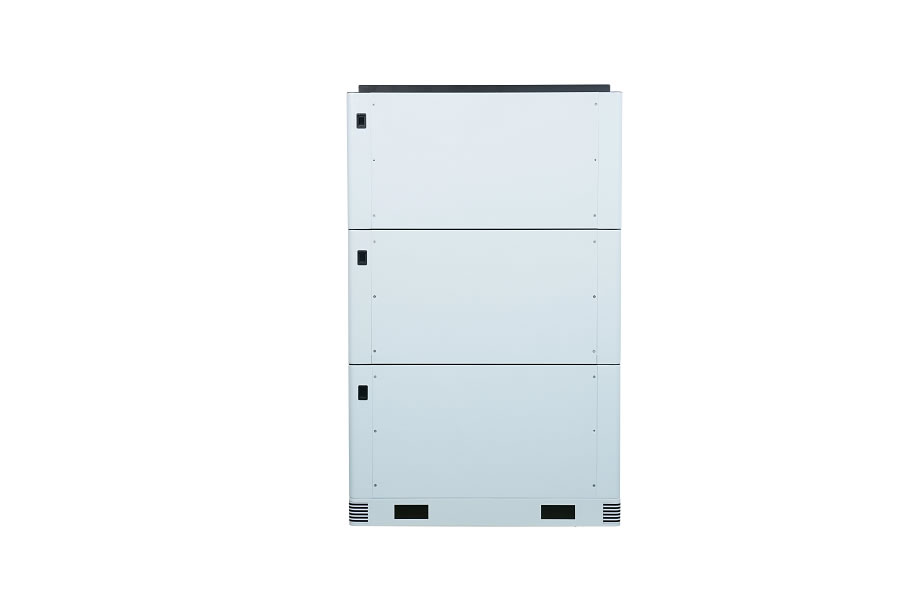

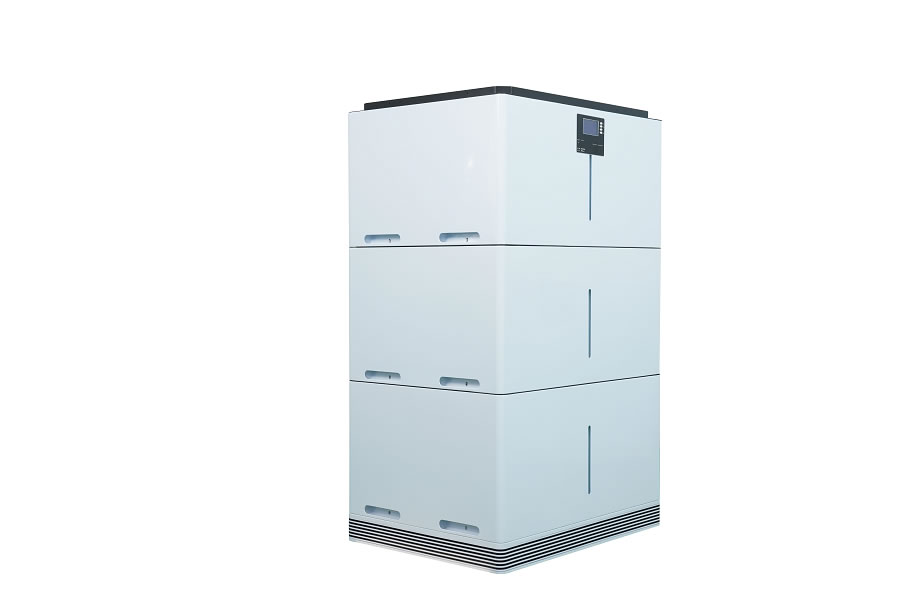

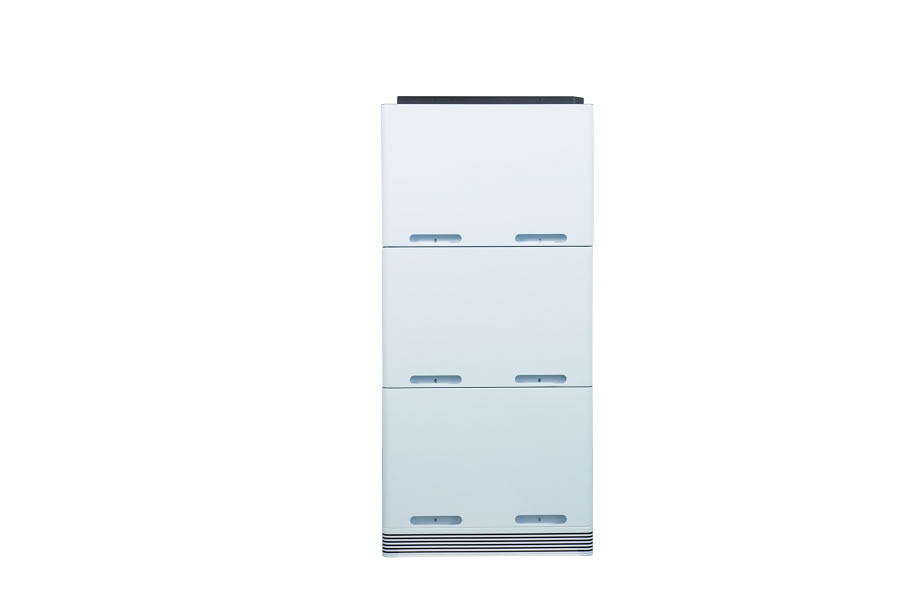

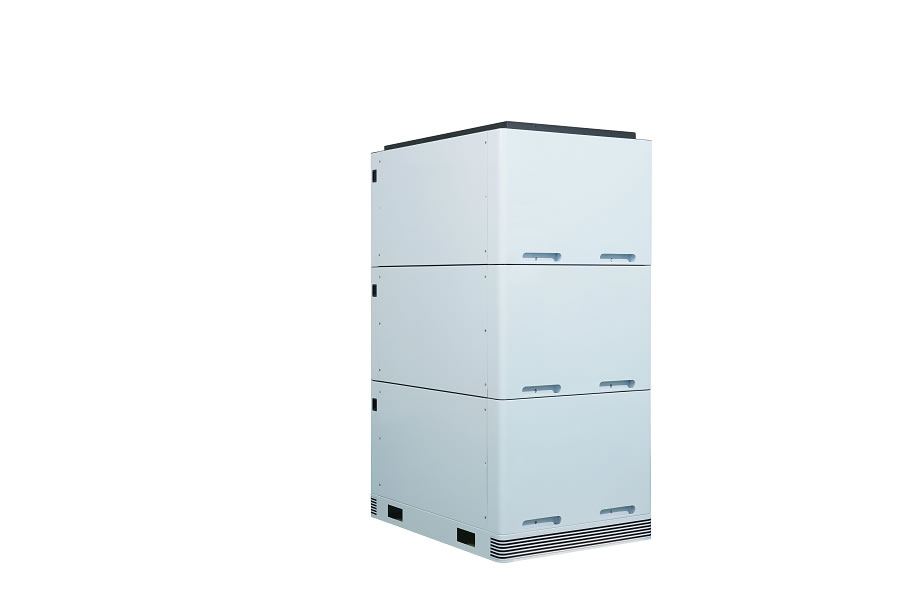

YESS-F-51.2V200Ah

LiFePO4 battery, more stable and safe .
Intelligent BMS equipped inside to maintain the battery always work at best condition .
Max. charge and discharge current as 300A which is specially designed for solar energy .
With equalizer can balance each lithium cell voltage difference as small as 0.05V in a very short With equalizer can balance each lithium cell voltage time .
Within solar inverter Modbus-485 and CAN communication protocol .
Excellent standby self-consumption as low as 4mA.
Automatically output cut off after 30days no

charge and discharge to ensure security ,

also can cut off output by manual operation .

机械特性: Terminal

M8; Dimension L*W*H /mm

760*565*854; Weight (approximate)/Kg

260.0

电气特性: Max. continue charge current/A

100; Max. pulse discharge current/A

300A 1Sec.; Max. continue discharge current/A

200; Float charge voltage/V

56.0; Voltage window/V

44.8 to 58.4

运行条件: IP Degree

IP20; Safety standard

UN38.3,MSDS; Storage duration

6 months at 25°C; Storage temperature

0 to 30°C; Operating temperature

Discharge -10°C to +50°C Charge 0°C to +50°C; Cycle life (+25°C 0.2°C 100%DOD)

>6000 Cycles
